W01-358-7230 Firestone Air Bags LHF500/220-2 For Big Press Cushions

Name: W013587230 Firestone Air Bags LHF5002202 For Big Press Cushions
Brand: AIRSUSTECH
Price: 1 USD

Wholesale W01-358-7230 Firestone Air Bags LHF500/220-2 For Big Press Cushions from china suppliers

Brand Name : AIRSUSTECH

Model Number : LHF500220-2

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 3 pieces

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : LHF500/220-2

N.W. : 17.5.0 KG

Warranty : One Year

Pressure Ability : 0.2-0.8 M PA

Other OEM : W01M586978

Top BOLT CIRCLE DIA : 596 mm

Bottom BOLT CIRCLE DIA : 596 mm

Air Inlet : no plate

Bumper : Without

Trademark : AIRSUSTECH or Neutral

Transport Package : Cartons

Specification : 24*24*24 cm

Origin : China

HS Code : 8708809000

Port : Huangpu, China

Function : Reduce Vibration

Material : Rubber and Aluminum

Usage : Industrial

Load Type : Compression

Production Process : Vulcanization

Shape : Convoluted

Contact Now

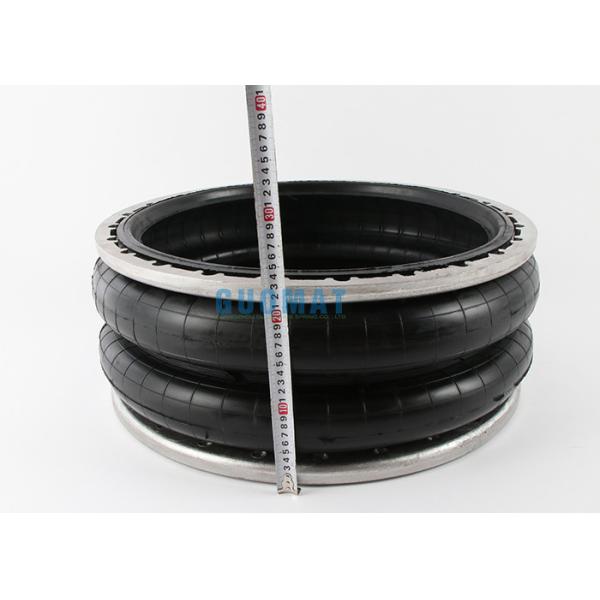

Firestone Air Bag W01-358-7230 High Strength AIRSUSTECH LHF500/220-2 For Big Press Cushions

AIRSUSTECH LHF500/220-2 OEM Reference:

AIRSUSTECH Part number: LHF500/220-2

AIRSUSTECH Part number: LHF500 220-2

Firestone:Style 215

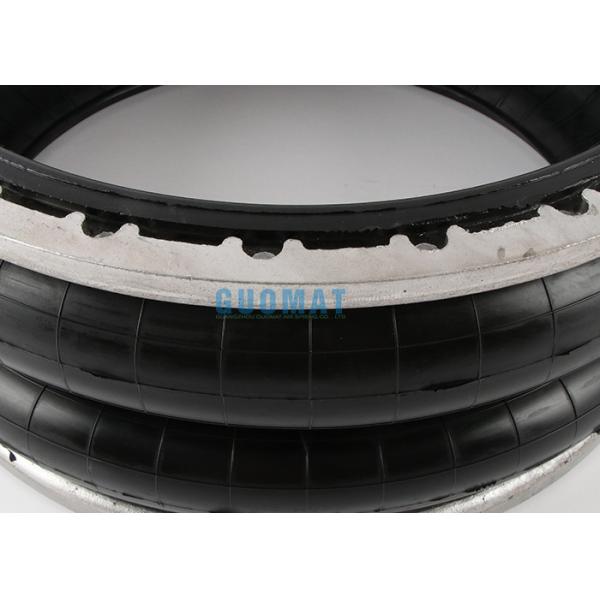

Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
Firestone Part number: W01-M58-7230;

Firestone Part number: W01 M58 7230;

Firestone Part number: W01M587230;

Two Ply Bellows
Rubber bellows only
Firestone Part number: W01-358-7912;

Firestone Part number: W01 358 7912;

Firestone Part number: W013587912

Item #: W013587912
Manufacturer: Firestone Industrial
Supplier Part #:W01-358-7912
Manufacturer Part Number W013587912
Part number changes: W01-358-7912, WO13587912, WO1-358-7912
Additional information: WO1-358-7912, 215C type (previously only used for rubber bellows)

Standard Imperial / 215C AIRSPRING BELLOWS

Specification of AIRSUSTECH LHF500/220-2:

Manufacturer Part Number	Short Description ;W01-M58-7912, W01M587912, WO1-M58-7912, WO1M587912;W01-M58-7230, W01M587230, WO1-M58-7230 WO1M587230	Bead ring Type	4
Maximum Diameter @ 7 Bar (mm)	707	Dim# C (Bolt Circle Diameter mm)	596
Maximum Height (mm)	84	# of Bolts (each ring)	32
Maximum Stroke (mm)	284	Design Height (mm)	381
Minimum Usable Height (mm)	368	3 Bar (kN)	78.5
25 mm (kN)	174.6	5 Bar (kN)	132.9
50% of Max Stroke (kN)	150	7 Bar (kN)	187.9
Maximum Stroke (kN)	106.5	Natural Frequency (@5 Bar)(fn(Hz)	1.2
Applicable Technigram	113	7 Hz	97
Material	2-Ply, High Strength Cord	13 Hz	99.3
		25 Hz	99.8

Large diameter @ 100 PSIG (inch)
27.9
Maximum height (inch)
12.1
Maximum stroke (inch)
8.6
Minimum usable height (inches)
3.5
Force at 1 inch (lb) stroke @ 80PSI
42500
Force at a stroke of 3 inches (lbs) @ 80PSI
40000
Force at maximum stroke @ 80PSI (pounds)
28160
Material
2-layer high-strength flexible cord
